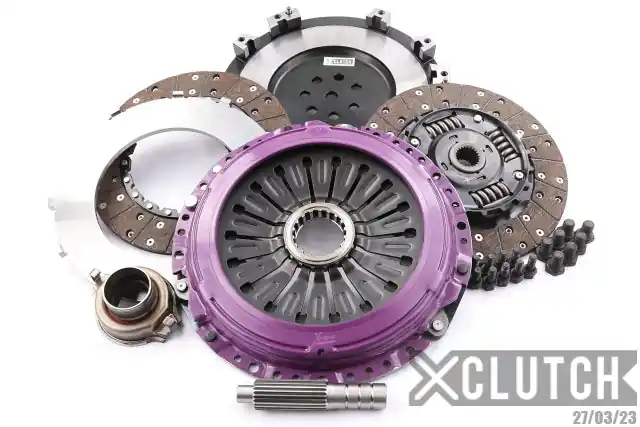

XClutch 1997 Mitsubishi Lancer EVO IV 2.0L 10.5in Twin Sprung Organic Clutch Kit (XKMI23522-2A) Save Now

Description

XClutch performance upgrades have been engineered to provide the ultimate in clutch performance. Utilising the latest pressure plate design and friction material composition, XClutch upgrades offer the ideal balance between driveability and performance for different vehicle applications. The pivot point and diaphragm design are carefully analysed to ensure positive pedal feel and increased clamping force. With one of the world’s most advanced clutch testing and R&D facilities, in-house vehicle testing and over 30 years of clutch experience, XClutch performance upgrades offer the highest levels of engineering and product development for your street vehicle, 4×4 or dedicated race car. Designed specifically for high horsepower, street driven vehicles, this twin disc clutch utilises sprung organic friction discs for excellent driveability whilst reducing shock loading on the transmission in comparison to the rigid style discs also available.

Specifications:

• Alignment Tool Included: Yes
• Clamping Force % Increase: N/A
• Clutch Disc Diameter(in): 9 1/16
• Disc Material: Organic
• Disc Type Sprung Solid: Sprung
• Flywheel Bolts Included: Yes
• Flywheel Included: Yes
• Flywheel Step(in): -0.768
• Friction Surface Configuration: Recessed
• Input Shaft Diameter(in): 1
• Input Spline Quantity: 23
• Maximum Torque(ft/lbs): 740
• Pilot Bearing Included: No
• Pressure Plate Bolts Included: Yes
• Recommended Use: High Power Street Use
• Release Bearing Included: Yes
• Spline Grease Included: Yes

Features:

• Recommended for High Power Street Use
• Twin Disc, Sprung Organic
• Heavy Duty, Diaphragm Type
• Friction Disc, Pressure Plate, Release Bearing, Flywheel – Pilot, Aligning Tool and Technical Service Bulletins (as required)

Experience the unparalleled performance and quality of XClutch, the choice of car enthusiasts and professionals worldwide.

Specification

• Part Type: Clutch Kits
• Clamping Force % Increase: N/A
• Clutch Disc Diameter (in): 9 1/16
• Clutch Disc Material: Organic
• Clutch Disc Type: Sprung
• Clutch Friction Surface Configuration: Recessed
• Flywheel Bolts Included: Yes
• Flywheel Included: Yes
• Input Shaft Diameter (in): 1
• Input Shaft Spline Quantity: 23
• Pilot Bearing Included: No
• Pressure Plate Bolts Included: Yes
• Release Bearing Included: Yes
• Spline Grease Included: Yes
